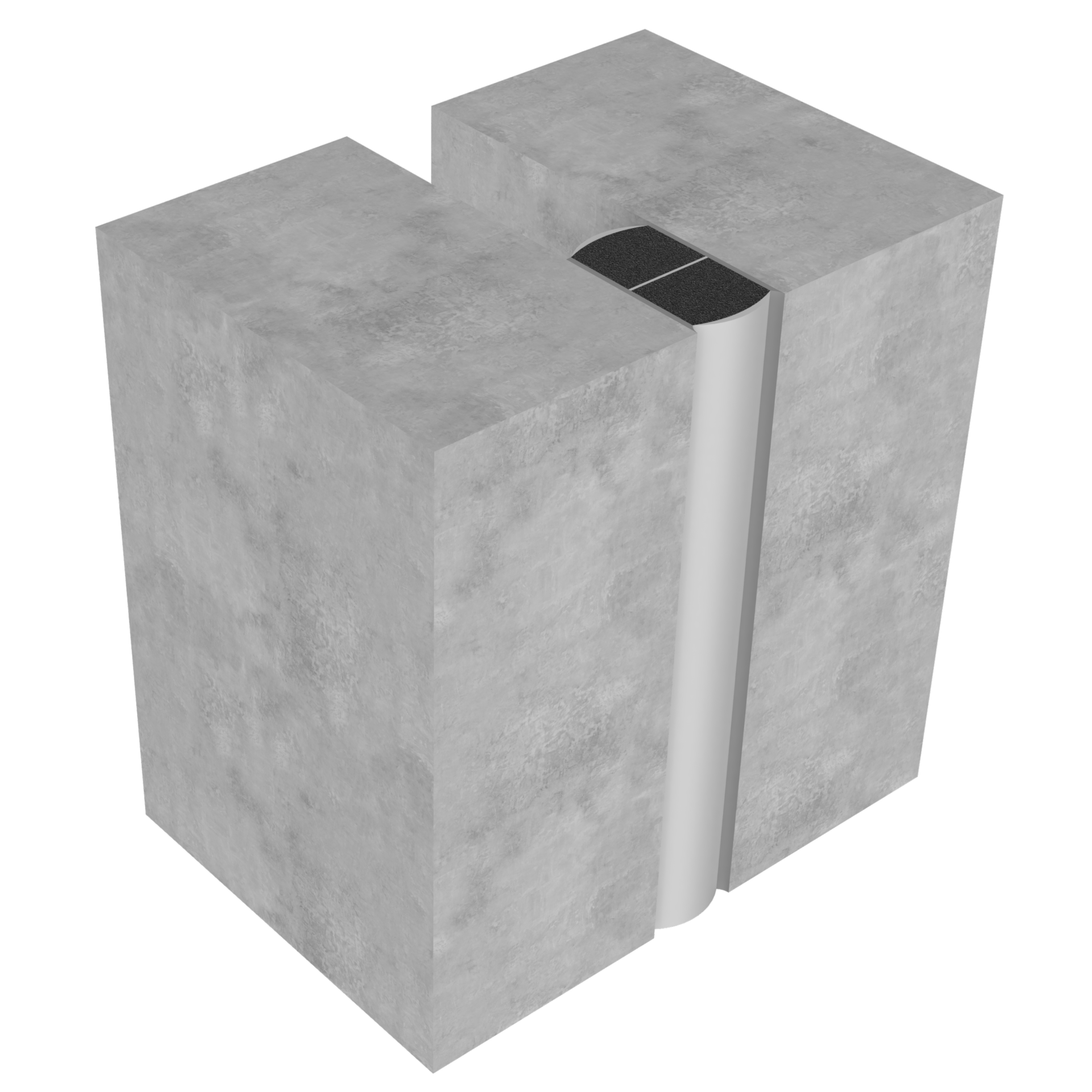

Willseal® BG100

Pre-Compressed Expansion Seal for Below-Grade Conditions

Willseal® BG100 is a pre-compressed, self-expanding open micro-cell polyurethane foam expansion joint engineered for vertical and horizontal below-grade conditions. Impregnated with a proprietary hydrophobic compound, factory-coated with sealant and featuring an integral lamination, Willseal BG100 delivers reliable performance in demanding below-grade environments.

Download Data Sheet

Download Application Instructions

Find a Rep or Distributor

Fast, Simple Installation

Supplied in a pre-compressed state, Willseal BG100 self-expands to fill the below-grade expansion joint using noninvasive anchoring, reducing installation time and complexity on site.

Excellent Movement

Accommodates up to 100% (±50%) movement and rapid rates of joint movement

UV Resistant

Provides long-term UV resistance for the life of the installation.

NSF-Compliant Food and Water Safe Options

Available with optional NSF/ANSI Standard 51 (food contact) or NSF/ANSI Standard 61 (potable water contact) approved sealant coatings, broadening suitability to food production and water treatment facility applications.

Excellent Compression Recovery

Open micro-cell polyurethane foam construction ensures Willseal BG100 rebounds consistently after compression, maintaining continuous joint contact and long-term seal integrity in below-grade environments.

Tremco System Compatible

Fully compatible with Tremco waterproofing and coatings systems, utilizing Tremco's standard waterproofing and coatings detail sealant for seamless single-source integration across the building envelope.

How does Willseal® BG100 install and expand in the joint?

Willseal® BG100 arrives in a pre-compressed state for ease of installation. Once placed in the joint, the material self-expands to fill the opening and form a continuous water resistant seal. Expansion time varies based on humidity, temperature and storage conditions in the prior 24 hours. The material will continue to expand and equalize in the joint over time.

Is Willseal® BG100 suitable for food production or potable water environments?

Yes. Willseal® BG100 is available with an NSF/ANSI Standard 51 approved sealant coating for food contact applications, or an NSF/ANSI Standard 61 approved sealant coating for potable water contact applications. Contact your Tremco or Willseal sales representative for details.

:Is Willseal® BG100 compatible with other Tremco products?

Yes. Willseal® BG100 is fully compatible with Tremco waterproofing and coatings systems and utilizes Tremco's standard waterproofing and coatings detail sealant, making it straightforward to integrate into broader Tremco below-grade waterproofing systems.

What sizes is Willseal® BG100 available in?

Willseal® BG100 is available in sticks from ½" to 3" in 6.5 ft lengths and in coils from ½" to 1" in 20 ft lengths. Custom sizes are available upon request. Contact Customer Service at 800-274-2813 or custserv@willseal.com.
