Willseal® Protector Plate™

Willseal® Protector Plate™ – Columnar

Hybrid Horizontal System with Built-In Cover Plate

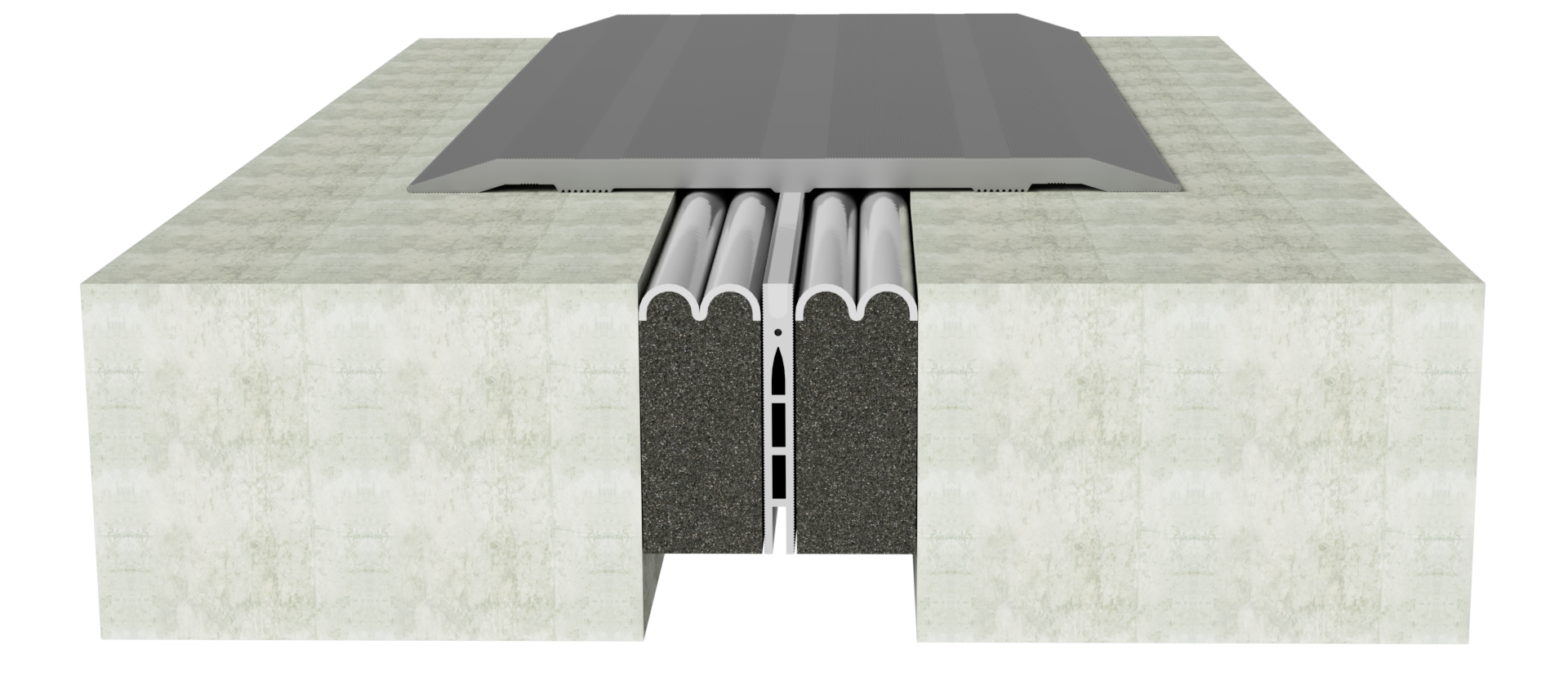

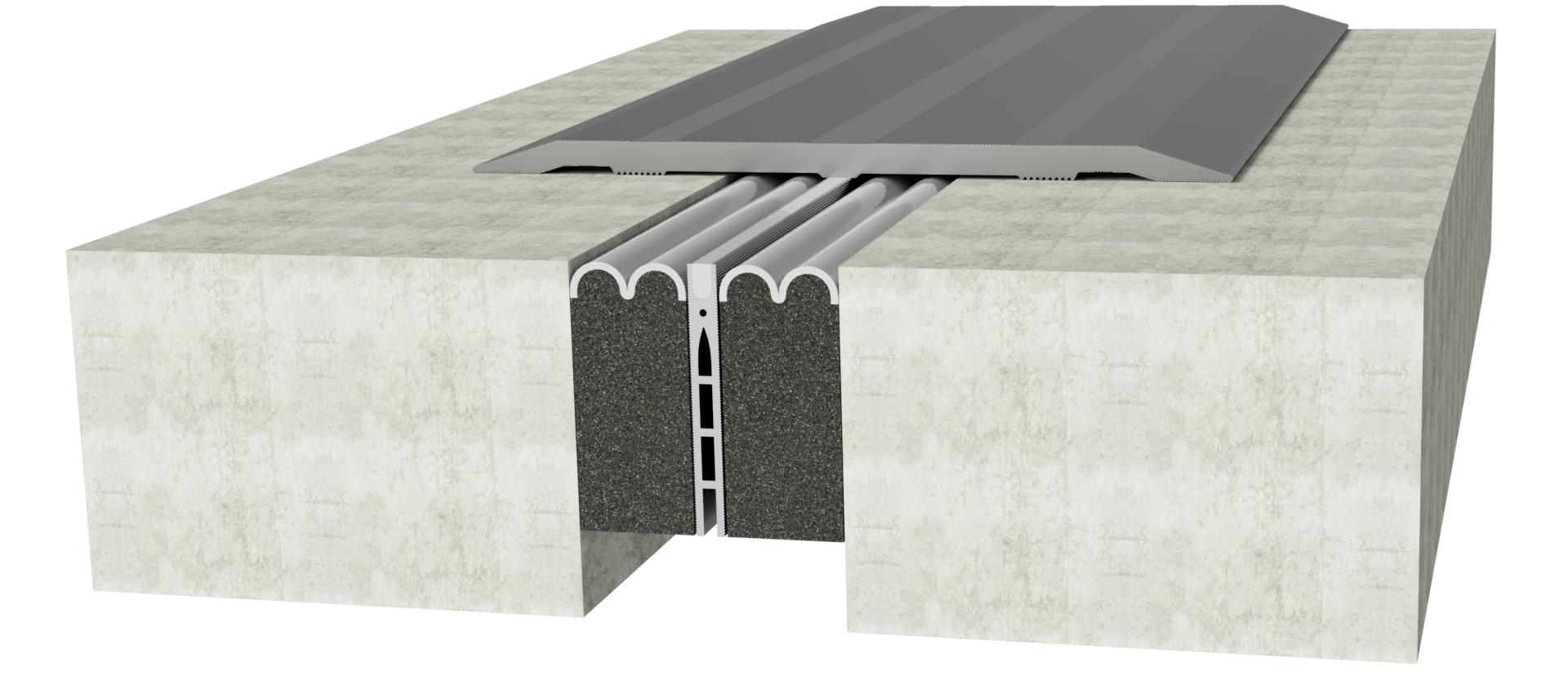

Willseal® Protector Plate™ – Columnar is a hybrid horizontal system comprised of two pre-compressed, self-expanding open micro-cell polyurethane foam expansion joints factory-assembled alongside a heavy-duty connecting panel and cover plate. Each foam joint is impregnated with a hydrophobic acrylic polymer sealing compound and finished with a factory-applied silicone sealant, delivering a watertight, dust-proof, airtight, noise-reducing, thermally insulating and UV-stable primary seal for expansion joint openings subject to pedestrian and vehicular loads. The system's non-invasive anchoring eliminates drilling and preserves substrate integrity, while its heavy-duty interlocking anchor frames maintain continuity of seal across the joint, even under seismic movement and heavy traffic conditions.

Download Data Sheet

Find a Rep or Distributor

Combined Sealing and Structural Protection

The hybrid foam-plus-cover-plate design provides reliable sealing performance and structural protection in a single factory-assembled unit, simplifying specification and installation.

Non-Invasive Anchoring

The system installs without drilling or substrate modification, preserving structural integrity and streamlining the installation process for both new construction and restoration projects.

Continuity of Seal Under Movement

Willseal Protector Plate – Columnar maintains an uninterrupted seal across the full joint, even as the structure experiences seismic movement and deflection from pedestrian and vehicular traffic. Icon: Movement Capabilities icon

Vibration and Sound Control

The system dampens vibrations and absorbs sound, reducing noise transmission across the joint in high-traffic environments.

Slip-Resistant, ADA Compliant Surface

A raised pattern slip-resistant surface profile provides maximum traction for pedestrian safety, while the design meets ADA guidelines for accessibility.

Heavy-Duty Interlocking Anchor Frames

Robust anchor frames with an interlocking design ensure proper alignment and long-term functionality under dynamic load conditions.

Suitable for Retrofit and New Construction

The system supports both restoration projects and new builds, providing a reliable watertight seal in either application.

What makes Willseal Protector Plate – Columnar different from a standard foam expansion joint?

Willseal Protector Plate – Columnar combines two factory-assembled foam expansion joints with a heavy-duty connecting panel and cover plate in a single hybrid system. This design delivers both a watertight primary seal and added structural protection, making it suitable for joints that experience pedestrian and vehicular traffic.

Can Willseal Protector Plate – Columnar be used for below-grade applications?

No. Willseal Protector Plate – Columnar is not intended for submerged or below-grade applications. Contact your Tremco or Willseal sales representative for below-grade joint solutions such as Willseal® BG100.

Does installation require drilling into the substrate?

No. Willseal Protector Plate – Columnar uses non-invasive anchoring, which eliminates the need for drilling or substrate modification and helps preserve structural integrity during installation.

Is Willseal Protector Plate – Columnar suitable for seismic applications?

Yes. The system is designed to provide continuity of seal across the joint even as the structure experiences seismic movement and deflection, making it well suited for parking garages, pedestrian bridges, concourses, airport roadways and stadiums.

Does the product meet accessibility requirements?

Yes. Willseal Protector Plate – Columnar is designed to comply with all ADA guidelines and features a raised pattern, slip-resistant surface profile for pedestrian safety.
